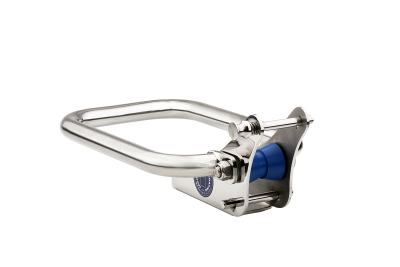

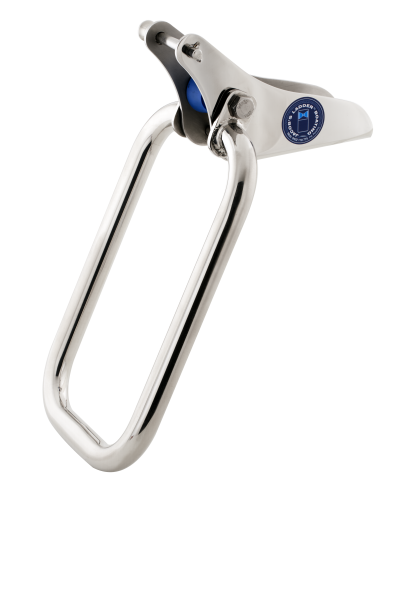

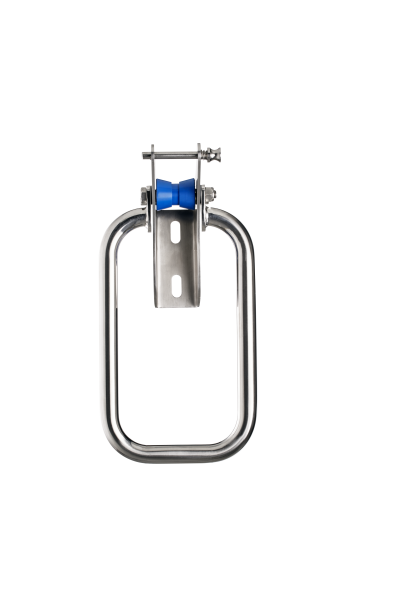

Ascend Mini

Ascend Mini

The Ascend ‘Mini’ bow access boat ladder comes standard with the smaller roller frame and is typically suitable for smaller boats up to around 4m (13’) including for installation on larger boat ‘tenders’ and inflatables.

With an overall ladder assembly length of 370mm (14.6”) and drop-down length of 350mm (13.8”) the Ascend ‘Mini’ when embarking provides a totally firm feeling underfoot as well as a more direct access pathway through the bow-rails and into the boat. When deployed the Ascend ‘Mini’ ladder rotates on the bow-sprit roller axle, folding forwards and downwards from its stowed position on the boat’s foredeck to a solid-fixed position and at a 20° angle from the vertical.

It is the angled and solid-fixed aspect of each of the bow access Jacob’s Ladders when deployed, along with their full integration with the bowsprit roller frame which are their unique and patented features.

(All metal parts supplied are 316L marine grade stainless steel)
(100% designed and made by Jacob’s Ladder Enterprises P/L)

SKU: N/A Category: Tag:

Description

Ladder frame constructed of laser-cut mirror finish 4mm 316 grade stainless steel plate. For aluminum boats, this roller ‘frame’ can be supplied in aluminum for either welding directly onto your boat or attachment by way of the stainless steel bolts and washers supplied with each ladder as standard.

  • All components 100% Australian designed, made and assembled by Jacob’s Ladder Boating
  • All ladders are supplied with:
    • 2 x M12 x 35mm 316 grade fully threaded bolts with nylocs for deck fixing
    • 2 x M12 x 45mm x 3mm 316 grade flat washers for under-deck support
    • PVC gasket (to separate stainless roller frame from contact with deck where boat is of aluminum construction)
    • Two self-adhesive ‘deck grip pads’ (for optional cover on stainless rungs where considered desirable)
    • Owners Instruction Manual

Essential installation dimensions:-
Overall length (i.e., with roller frame) = 370mm (14.6”)
Tubular ladder width = 200mm (7.9”)
Roller frame ‘baseplate’ width = 60mm (2.4”) … Standard roller frame
Roller frame ‘baseplate length = 130mm (5”)
Max height = 130mm (5”)

Additional information

Weight 7 kg
Dimensions 670 × 250 × 160 mm
Ladder Dimensions & Weight

Note: Package dimensions and weight listed above.

Overall Length: 350mm, Tubular Ladder Width: 210mm, Roller Frame Length: 130mm, Roller Frame Width: 60mm, Weight: 5.5kg

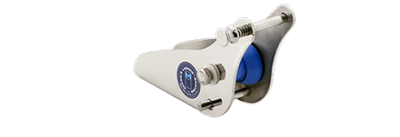

Bow Roller Frame

130mm x 60mm frame-to-deck surface connection area. Please contact us to enquire about the smaller frame.

Note: The Ascend Mini has a slightly shorter frame than that supplied with the Ascend (in terms of its length and height) to match the smaller tubular assembly. The roller frame shape extends out beyond the 130x60mm base to help prevent potential damage to the bow surface as the anchor is being retrieved.

Maximum weight permissible for personnel boarding

120 Kilograms

Warranty Policy

3 years warranty subject to proper maintenance and care of the ladder consistent with Jacob’s Ladder Ascend product user guide. The Jacob’s Ladder Ascend product user guide supplied with your ladder provides detailed information on attaching the ladder, maintenance and responsible care instructions, as well as the warranty and returns policy.

Types

Stainless Steel Roller Frame, Aluminium Roller Frame
