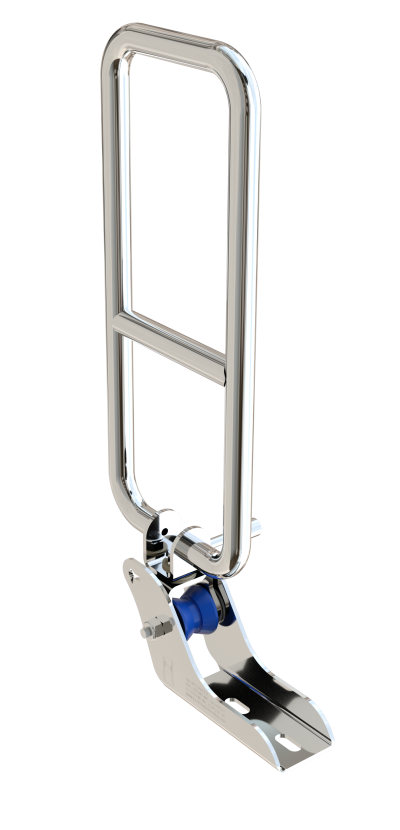

‘Ascend’ Swivel Classic Ladder

The ASCEND ‘Swivel’ bow access boat ladder comes standard with its own customized roller frame and depending on aspects such as bow height and bow-rail/anchor assembly configuration is typically suitable for boats up to 6m (19.7’).

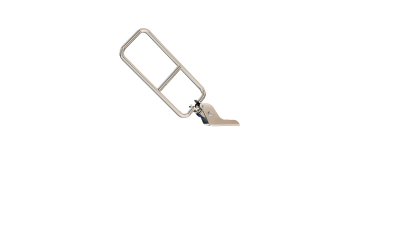

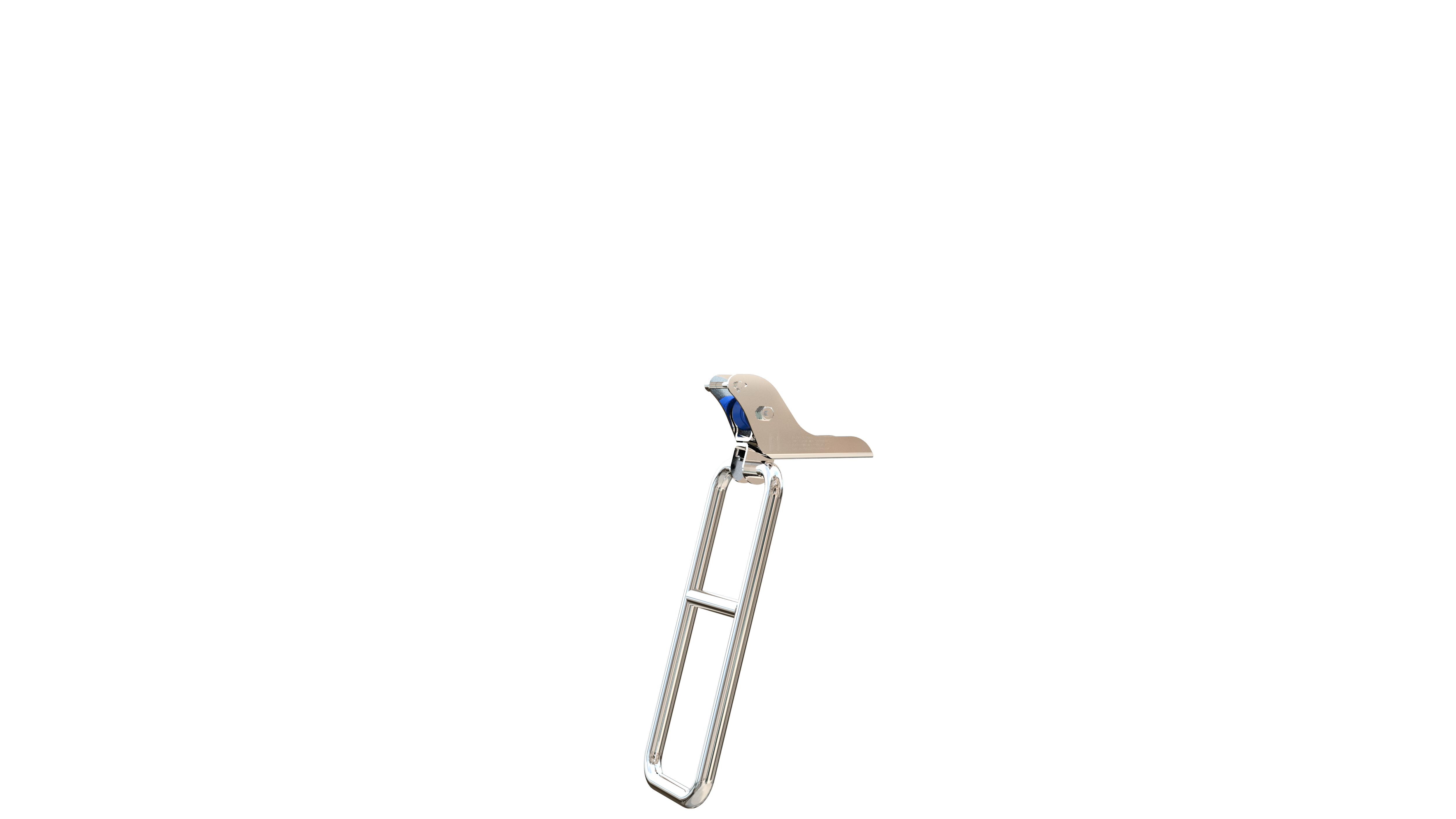

With an overall ladder assembly length of 630mm (24.8”) and drop-down length of 580mm (22.8”) the Ascend ‘Swivel’ has been designed and developed for those boats with a frontal bow-rail ‘gap’ which is very narrow, and which otherwise would not allow for a standard Jacob’s Ladder to pass through for deployment.  With the ‘Swivel’ model the tubular ladder is lifted from its stored position on the foredeck; turned onto its side via the swivel bracket within the roller frame; passed through the boat’s narrow bow-rail gap; and then turned back to its normal face-down deployed position at a 10⁰ angle coming to a solid-fixed rest against the front of the bowsprit roller frame.

As with all of the Jacob’s Ladder models, when boarding or disembarking the Ascend ‘Swivel’ provides a totally firm feeling underfoot as well as a more direct access pathway straight through the bow rails into/from the boat.

It is the angled and solid-fixed aspect of each of the bow access Jacob’s Ladders when deployed, along with their full integration with the bowsprit roller frame which are their unique and patented features.

(All metal parts supplied are 316L marine grade stainless steel)
(100% designed and made by Jacob’s Ladder Enterprises P/L)
