Ascend – Classic

$666.00$886.00 (Inc GST)

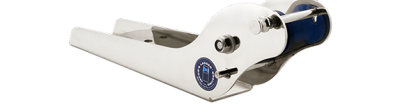

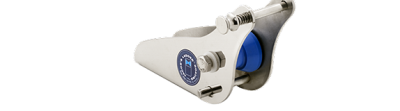

The Ascend ‘Classic’ bow access boat ladder which comes standard with the smaller roller frame (larger ‘Tournament MarkI’ roller frame optional) is typically suitable for boats up to 6m (19.7’) and potentially suitable for craft beyond 6m (19.7’) depending on the bow configuration, bow height and/or anchor size and/or anchor retrieval assembly.

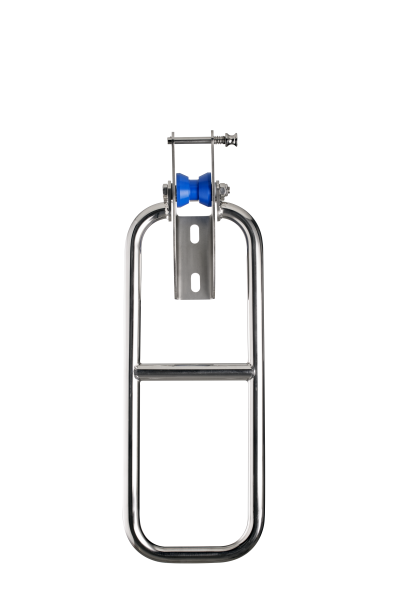

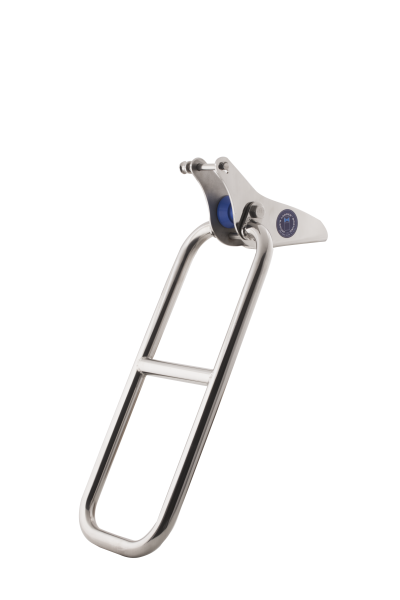

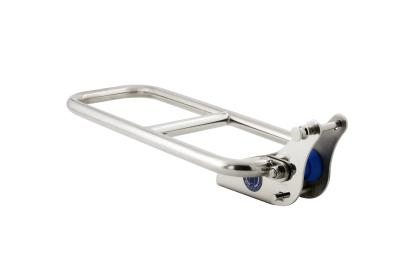

With an overall ladder assembly length of 570mm (22.4”) and drop-down length of 540mm (21.3”) the Ascend ‘Classic’ when embarking provides a totally firm feeling underfoot as well as a more direct access pathway through the bow rails and into the boat. When deployed the Ascend ‘Classic’ ladder rotates on the bow-sprit roller axle, folding forwards and downwards from its stowed position on the boat’s foredeck to a solid-fixed position and at a 20° angle from the vertical.

It is the angled and solid-fixed aspect of each of the bow access Jacob’s Ladders when deployed, along with their full integration with the bowsprit roller frame which are their unique and patented features.

(All metal parts supplied are 316L marine grade stainless steel)
(100% designed and made by Jacob’s Ladder Enterprises P/L)

Product total
Options total
Grand total
SKU: N/A Category: Tag:
Guaranteed Safe Checkout

Ladder frame constructed of laser-cut mirror finish 4mm 316 grade stainless steel plate. For aluminium boats, this roller ‘frame’ can be supplied in aluminium for either welding directly onto your boat or attachment by way of the stainless steel bolts and washers supplied with each ladder as standard.

  • All components 100% Australian designed, made and assembled by Jacob’s Ladder Boating
  • All ladders are supplied with:
    • 2 x M12 x 35mm 316 grade fully threaded bolts with nylocs for deck fixing
    • 2 x M12 x 45mm x 3mm 316 grade flat washers for under-deck support
    • PVC gasket (to separate stainless roller frame from contact with deck where boat is of aluminium construction)
    • Two self-adhesive ‘deck grip pads’ (for optional cover on stainless rungs where considered desirable)
    • Owners Instruction Manual

Essential installation dimensions:-
Overall length (i.e., with roller frame) = 570mm (22.4”)
Tubular ladder width = 200mm (7.9”)
Roller frame ‘baseplate’ width = 60mm (2.4”) … Standard roller frame
Roller frame ‘baseplate length = 125mm (4.9”)
Max height = 145mm (5.7”)

Weight N/A
Dimensions N/A
Ladder Dimensions & Weight

Note: Package dimensions and weight listed above.

Overall Length: 550mm, Tubular Ladder Width: 210mm, Roller Frame Length: 130mm, Roller Frame Width: 60mm, Weight: 5.5kg

Bow Roller Frame

130mm x 60mm frame-to-deck surface connection area. Please contact us to enquire about the smaller frame.

Note: The roller frame shape extends out beyond the 130mm base to help prevent potential damage the bow surface as the anchor is being retrieved

Maximum weight permissible for personnel boarding

120KG – 275LB
