Ascend 3 Step Extendable

Ascend 3 Step Extendable

The ASCEND ’3 STEP EXTENDABLE’ ‘bow access’ ladder typically comes standard with our larger ‘Tournament MarkI’ bow-sprit roller frame and is suitable for boats upwards of 6m (19.7’) in length with above average bow heights and is potentially suitable for craft beyond 6m (19.7’) depending on bow configuration, anchor size and/or anchor retrieval system.

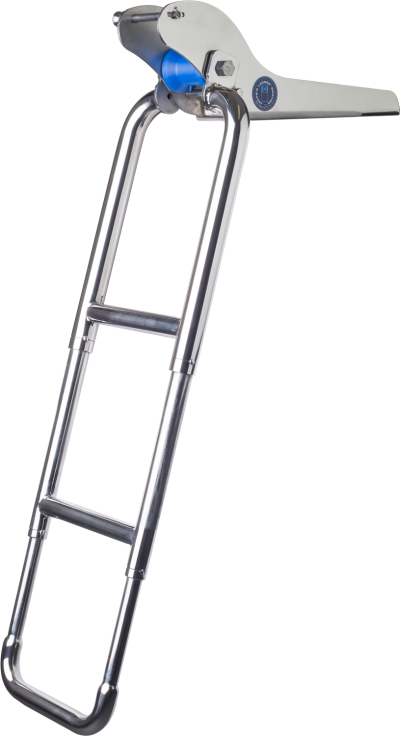

As is the case with all of our Jacob’s Ladder versions the ‘3 Step Extendable’ ladder when deployed rotates on the bow roller axle, folding forward from its retracted and stowed position on the boat’s deck to a solid-fixed deployed position and pointing downwards and outwards at a 100 angle from the vertical.

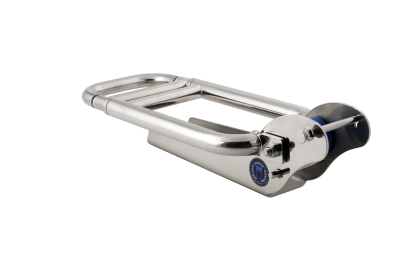

The Ascend ‘3 Step Extendable’ extends downwards from its retracted/stored length of 480mm (18.9”) to a drop-down length of 820mm (32.3”’) providing a totally firm feeling underfoot as well as a more direct access pathway through the bow rails and into the boat. It is the angled and solid-fixed aspect of each of the ‘bow access’ Jacob’s Ladders when deployed, along with their full integration with the bowsprit roller frame which are their unique and patented features.

(All metal parts supplied are 316L marine grade stainless steel)
(100% designed and made by Jacob’s Ladder Enterprises P/L)



SKU: N/A Category:

Description

  • All metal components (tubular assembly as well as bow sprit roller frame) constructed of 316L marine grade stainless steel.
  • All Jacob’s Ladders are 100% Australian designed, made and assembled
  • All ladders are supplied with:— 4 x M10 x 40mm 316 grade fully threaded button-head bolts with nylon for deck fixing– 4 x M10 x 3mm 316 grade large flat washers for under-deck support– PVC gasket (to separate stainless roller frame from contact with deck where boat is of aluminum construction)– Three self-adhesive ‘deck grip pads’ (for optional cover on stainless rungs where considered desirable)– Owners ‘Instruction Manual’

Essential installation dimensions:-
Overall length (i.e., with roller frame) = 600mm (23.6”)
Tubular ladder width = 235mm (9.25”)
Roller frame ‘baseplate’ width = 85mm (3.4”) … Tournament roller frame
Roller frame ‘baseplate length = 300mm (11.8”)
Max height = 150mm (5.9”)

Additional information

Weight 7 kg
Dimensions 670 × 250 × 160 mm
Ladder Dimensions & Weight

Note: Package dimensions and weight listed above.

Bow Roller Frame

130mm x 60mm frame-to-deck surface connection area. Please contact us to enquire about the smaller frame.

Note: The roller frame shape extends out beyond the 130mm base to help prevent potential damage to the bow surface as the anchor is being retrieved

Maximum weight permissible for personnel boarding

120 Kilograms

Warranty Policy

3 years warranty subject to proper maintenance and care of the ladder consistent with Jacob’s Ladder Ascend product user guide. The Jacob’s Ladder Ascend product user guide supplied with your ladder provides detailed information on attaching the ladder, maintenance and responsible care instructions, as well as the warranty and returns policy.

Additions

Ladder with SWIVEL, Ladder with GRAB HANDLE
